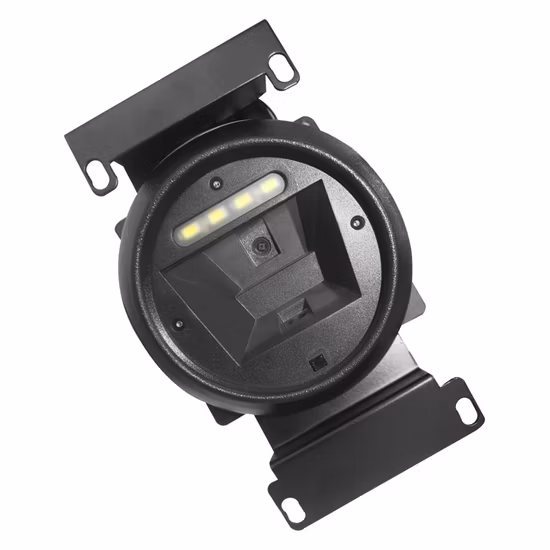

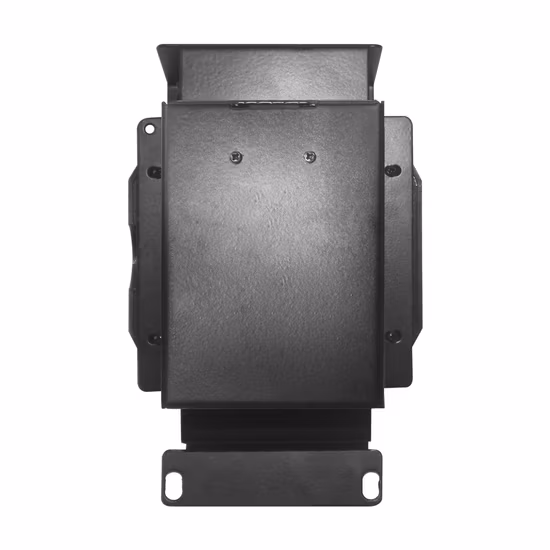

Embeded 2D Scan Module Barcode Reader

Basic Info.

Model NO.	MS-7730S
Light Source	Illumination: 4000K LED
Product Name	Fixed Mount Scanner for Kiosk Access Control
Applications	Bus Ticketing, Subway&Railway Station Gate
Weight	32.5g
Image(Pixels)	640 Pixels(H)*480 Pixels(V)
Voltage	3.3-5VDC
Transport Package	Foam+Carton
Specification	61.2mm*65mm*27.6mm
Trademark	MASUNG
Origin	Guangdong
HS Code	8471605000
Production Capacity	30000/Per Month

Product Description

MS-7730

1. Optional 80/110 ° large viewing angle, support "Surface" scan code or 3.9mil precision scan code

2.> 2M / S motion tolerance, can be easily read even during fast movement, avoiding line

3. Interface diversification , built-in RS232 and USB

4, 28MM ultra-thin design is more suitable for integration

5.Built-in buzzer

6, High-sensitivity lens, comes with backlight, both sunlight and completely dark environment can be read

Applications:

Bus ticketing, subway&railway station gate, parking lot, self-service, ATM self-service cabinet, inquiry terminal,queuing equipment, library.

Physical Characteristics
Dimensions:	61.2mm*65mm*27.6mm
Weight:	32.5g
Voltage:	3.3~5 VDC
Current:	170mA
Performance Characteristics
Image(Pixels):	640 pixels(H)*480 pixels(V)
Light Source:	Illumination:4000K
Field of View:	110°
Roll / Pitch / Yaw:	360°, ±80° , ±60°
Print Contrast:	20% minimum reflective difference
Interfaces Supported:	USB,RS232
Motion Tolerances:	>2m/s
Symbology Decode Capability
1D:	Codabar, Code 11, Code 39, Code 93, Code 128/EAN128, EAN.UCC Composite, Interleaved 2 of 5,MSI Code, Planet, Plessey Code, Postnet, RSS, Standard 2 of 5, Telepen, UPC/EAN, etc
2D:	PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, TLC 39, DataMatrix, etc.
Minimum Resolution:	≥4 mil
Environment
Operating Temperature:	-20°C to 60°C
Storage Temperature:	-30°C to 70°C
Humidity:	5% to 95% relative humidity,non-condensing
Shock Specifications:	2000 G, 0.7 ms, half sinus, 3 axes
Ambient Light Immunity:	0-100.000 Lux.
Decode Ranges
Code 128(5 mil)	3-15cm
Code 39(13 mil)	4-19cm
Alipay payment code (QR3*3cm)	3-30cm(Screen Iuminance: 50%)/3-21cm(Screen Iuminance: 100%) Note:Screen Iuminance can not be less than 20%.
Wechat payment code (QR2.3*2.23cm)	3-26cm(Screen Iuminance: 50%)/2-22cm(Screen Iuminance: 100%) Note:Screen Iuminance can not be less than 20%.
Ali bus barcode	5-16cm(Screen Iuminance: 50%)/5-16cm(Screen Iuminance:100%) Note:Screen Iuminance can not be less than 20%.
Performance may be impacted by bar code quality and environmental conditions
Certifications
Certifications

FAQ1
Q:Are you a manufacturer or trading reseller?Masung: We are real manufacturer which factory locates in Li Jin Cheng industrial park,Shenzhen city, PR China. We own experienced engineers team, complete quality control system, efficient production equipments and highly skilled staffs.2
Q:Can you offer OEM/ODM service for our order?Masung: We can support different aspects customization service including hardware/mechanical design. But there is a MOQ request.3
Q:What is your MOQ?Masung: There is no MOQ limit, Sample is availale.4
Q:What is your payment way?Masung: We accept TT, Western Union and LC.5
Q:Can I pay on alibaba?Yes, it would increase our credit points if more customers pay through alibaba platform.To customer100% Product quality protection100% On-time shipment protection100% Payment protection6
Q:How long is your delivery time?Masung: Generally it is 2-3 weeks, sample is 2-3 days. It depends on order quantity.7
Q: Which way to deliver the goods?DHL, Fedex, EMS, China Post, Express and so on. We also support the goods to ur ship agent. We take the most convenient one for u.8
Q:What the after sale service?Each products will be tested strictly before delivery and our failure rate be limited to the range of 0.01%.Our all products will provide 24 months warranty.Enough stock spare parts for guarantee.Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field.
