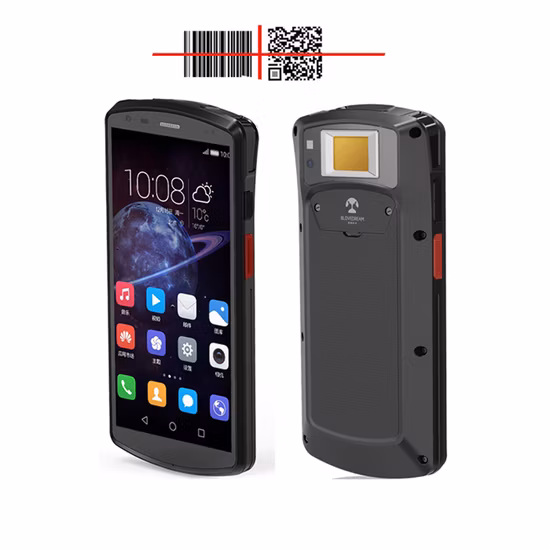

Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader
HomeHome > Products > Handheld Barcode Scanner > Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader
Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader

Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader

1) Default Configuration: Wifi + BT + 4G (FDD / TDD-LTE) + Phone + GPS + 8M Camera + Google Player Store 2) 1D, 2D, NFC
Basic Info.
Model NO. S80
Internet Connection WI-FI
Classification Bar-code Scanner
RFID Reader Optional UHF Lf HID NFC
Support Support a-GPS
Barcode Scanner 1d or 2D Optional
Function Warehouse Logistic Inventory
Fingerprint (Optional) Capacitive Sensor
Process Type Arm Cortex-A53 64bit Quad-Core 1.3G
Camera 8MP Autofocus Camera with Flash
FDD/Tdd-Lte 4G Tdd-Lte (B38, B39, B40, B41), FDD-Lte (B1, B3)
Battery 3.7V 4200mAh
Keyword PDA WiFi
Transport Package Carto Box with Bubble
Specification 400g
Trademark Blovedream
Origin China
HS Code 8471604000
Production Capacity 10000 Per Year
Product Description
1) Default Configuration: Wifi + BT + 4G (FDD / TDD-LTE) + Phone + GPS + 8M Camera + Google Player Store
2) 1D, 2D, NFC (13.56MHZ), fingerprint, OTG, Cradle For Option;
3) Compact And Portable Ergonomic Design With Wrist Strap
4) Safedroid OS (Android8.1) Highly Optimized Android Operating System.
5) 8.0M Mega Pixel Camera.

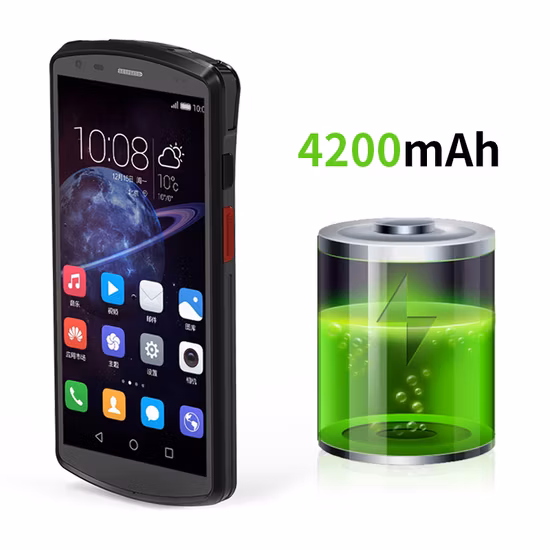

6) High Capacity 4200mAh Large Capacity Battery For Critical Requirements;
7) Pogo Pin Interface For Convenient Charging With Optional Charge Cradle.
8) Industrial Rugged Design, Water-Proof And Protection Grade (IP66);
9)About Shipment: We offer DHL shipping usually, but in emergency, we can choose another shipping option.
Normally : DHL shipment: USA, Britain, Germany, Italy, Belgium, France, Spain and soon,EMS shipment :Russia, Saudi Arabia, Brazil and so on.
After your confirm the CI and shipment ways , we will start to arrange the shipment.
If you have any requestment for shipping, Pls connect with us. Thank you.
If you wanta buy sample for testing or questions, please contact me :

Judy



Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader


Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader


Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader


Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader

Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader

Structural Parameter
DimensionsDimensions 159mm×75mm×18mm
Weight<500g
Display Screen5.7 inch IPS color display with resolution 720*1440
Expand PortSIM card, micro SD (TF) Card
Communication Interface

Type-C USB

Input ModeStandard Stylus, Handwriting, touching input or keyboard input,Function key×4
Battery Capacity

Rechargeable polymer battery (3.8V 4200mAh) removable

Frequency8ohm 1W speaker
KeySilicone button
Performance Parameter
OSAndroid 9.0
CPU

Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor

RAM3G/4G RAM
Flash ROMStandard 32G/64G NAND Flash Storage
micro SD/TF port (Max up to 128G)
Data Communication
WI-FI

Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol

FDD/TDD-LTE 4G

FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41

WCDMA 3G

WCDMA(850/900/1900/2100MHz)

GSM 2G

GSM(850/900/1800/1900MHz

Bluetooth

Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters

Standard Modules

Rear camera

13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting

Front camera

2MP color camera

GNSS

Support GPS, Galileo, Glonass, Beidou

Operating Environment
Operating-20°C to 55°C
Storage Temperature-40°C to 70°C
Environment Humidity5%RH-95%RH(no condensation)
Drop Specifications

6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature

Roll Specifications

500×0.5m rolling for 6 sides

Sealed EnvironmentIP66
2D CMOS (OPTIONAL)
CMOS Scanner

Honeywell N3601 Honeywell N6603

The Sensor Resolution752(level)×480(vertical)pels(gray level)
Ambient LightAll dark 9000ft.candles/96900 lux
focus element (VLD)655nm ± 10nm
Support bar code typePDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
Fingerprint recognition (Optional)
SensorTCS2SS
Sensor typeCapacitive Sensor
FunctionEnrollment, compare, deletion etc.
Resolution508DPI
Memory1,000 PCS fingerprints
ID card identification (Optional)
Security moduleID verification system dedicated module
Distance0~5cm
Frequency13.5MHz±7kHz
NFC Reader (Optional)
Frequency13.56MHz
Protocol

Support ISO14443A/B, 15693 agreement

Range2-5cm

High-speed operation performance:
With android 9.0 operating system, matching 64 bit Octa-core 2.0GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.
Excellent identification ability :
Fully support 2D barcode scanning,NFC(optional).
Fingerprint recognition (Optional):
Configure TCS semiconductor sensor with live identification technology
ID card identification (Optional):
ID verification system dedicated module
Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.7 inch IPS (720x1440) Work even with water or Gloves.
Abundant means of data transportation:
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial grade durability:
IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof,dustproof provide long time using without fatiguet.
HD Camera:
Front 2 megapixel camera,Rear 13 megapixel camera, is convenient for client to collect all kind of images and video.
Multiple extensions:
Support GPS , AGPS and Beidou compass navigation.
Always-available wireless connection:
Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.
