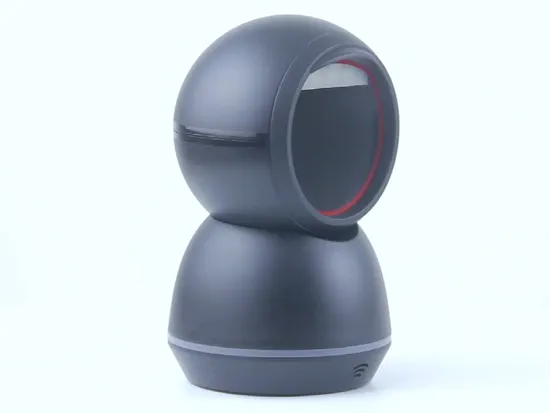

High Speed Desktop Omnidirectional 2D Image Barcode Scanner

Basic Info.

Model NO.	GS-A700
Network Scanning	Support Network
Interface Type	USB
Scanning Element	White LED
Optical Resolution	600dpi
Application	Commercial Application
Image Sensor	640*480 Pixels
Light Source	LED White LED
Motion Tolerance	2m/Sec
Weight	278g
Resolution(Maximum)	0.102mm / 4mils
Color	Black& White
Interface	USB Port
Product	POS Terminal and Accessories
Warranty	1 Year
Transport Package	1set / Carton, Plastic Bags & Foams & Carton
Specification	96*105.55*157.06mm
Trademark	GSAN
Origin	China
HS Code	8471605000
Production Capacity	20000 PCS/Month

Product Description

PRODUCT ATTRIBUTES

2D Image Platform scanner GS-A700
Performance Parameter
Light Source	LED White LED
Image sensor	640*480 pixels
Resolution(maximum)	0.102mm / 4mils
Print contrast ratio(minimum)	≥15%
Motion tolerance	2M/sec
Reading Angle	Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°
Decoding Capability	1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.
Reading Indicators	LED/Buzzer(adjustable tone)
Typical depth of Filed	Precision Barcode Depth of Filed 5mil CODE128 0mm-70mm 5mil EAN-13 0mm-70mm 13.34mil EAN-13 0mm-240mm 5mil PDF417 0mm-60mm 10mil PDF417 0mm-170mm 15mil PDF417 0mm-270mm 20mil DM 0mm-80mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.
Physical characteristics
Color available	White; Black
Dimensions(L*W*H)	96*105.55*157.06mm
Weight	278g
Cable	1.8M
Electrical Parameter
Current	Working current(Standard): < 300 mA Standby current(Standard): < 210 mA
Input Voltage	5 VDC (+/- 10%)/500mA
Environmental Parameter
ESD protection(Air discharge)	8 kV
Drop resistance	Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.
Temperature	Operation: 0 to 40 °C Storage/Transport: -40 to 70 °C
Humidity(non-condensing)	5 - 95%
Ambient light	0 -100,000 lux
Interfaces
Interfaces	RS-232; USB HID; USB COM;HID POS available as per customer's needs
Warranty
Warranty	18/months

PRODUCT CATEGORIES
COMPANY INFORMATION
(1) PRODUCT DEVELOPMENT TEAM
We have our own research and development team of engineers for product to run more stable.
(2) STRICT MATERIAL PURCHASING
Taking fully into account the suitability of accessories at design-time and non-compatibility, there are strict party control and to expect the delivery inspection.(3 )STRICT PRODUCTION CONTROLL
GSAN using assembly-line production, strict homework and testing requirements to ensure product consistency.(4) RIGOROUS QC TESTING
GSAN are subject to rigorous testing before launch, including functional testing, application testing,
security testing, electromagnetic compatibility testing, as well as temperature and humidity test.
(5) AFTER-SALES SERVICE
Customer Service is even based on "dedication to customer service," responsibility is to uphold the legitimate rights and interests of our customers to ensure that manufacturers credit!
(6)CERTIFICATE AUTHENTICATION
After 10 years of unremitting quality management, the company's various products have 3C, FCC, CB,, CE, EMC and many other certified products are exported to Europe and the United States and around the world.

EXHIBITION & CUSTOMER PHOTO

OUR CERTIFICATE

HOW TO CONTACT US?

Web	http://gzgsan.en.made-in-china.com http://gzgsan.en.made-in-china.com/
Address	4F, No.C10, Huachuang Animation Industrial Park, Jinshan Avenue, Shiqi, Pan Yu District, Guangzhou City. China (Mainland)

OEM & ODM?

Provide ODM or OEM services, if purchased from sunphor, conforms to the manufacturer's specifications and will be free from defects in workmanship and materials for a period of 2 years (24 months) from the date of original purchase.

1) During the warranty period, should your SUNPHOR product prove to be defective, free to call or email us for warranty repair instructions.
2) We have service technician provide telephone or email diagnostic service to you. Customer's satifactory is our permanent principle.
3) Regarding to the defective product, we will exchan
ge the spare parts without charge for parts or labor. And the broken product or spare parts don't need to be sent back to us, we will send new ones with your next order.

QUALITY CONTROL AND MARKET

1. Certifications: ISO9001,ISO1004, CE, FCC, ROHS,CB,CCC
2. QC Staff: 12 QC employees with more 5 years experience will guard our products quality before goods are sending out. Meanwhile our 10 engineers is ready to provide momentarily the most professional technology and customization for you. That is why we always stay ahead of the competitors.
3.Material: Intel CPU,Industrial mainboard,New ABS material of shell,Original Sharp LCD,SMT electronic manufacture,Print machanism imported from Seiko.
4. Market :USA, Canada, Bolivia,Ecudor, Colombia, Argentina, Brazil, Chile, RussiaAustralia,China,Romania,France,Germany,Ghana,Morocco,SouthAfrica,Argeria,Vietnam,Philippines,Thailand etc
FAQ
1. How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team
before delivery. Moreover, our production is abided by ISO9000, 3C, FCC, CB, CE and EMC.
2. Can you send samples for confirmation? Are they free?
Yes, of course, but sample fee is not for free.
3. What about delivery time?
Generally, production needs 7 to 15 days. And it also depends on product and quantity.
4. Can customize, modify and develop products according to the design drawing?
Yes, we provide OEM service and can customize products according to the drawing.
5. Whether the price reasonable?
With factory, we promise to provide reasonable and cost-effective price.
6. What about terms of payment?
Payment terms: T/T, west Union and L/C, etc.
7. Can you tell me something about product materials and workmanship?
We adopt environmental protection materials, and they are harmless to human being.
8. Can you list the products of your company?
Epos, touch Pos, receipt printer, cash box and barcode scanner.
9. If found quality problems, what should I do?
You can replace for a new one or we provide repair for you within 30 days for free.
10. What about minimum order quantity?
We have no limit for MOQ, so you can even buy only 1 piece.
