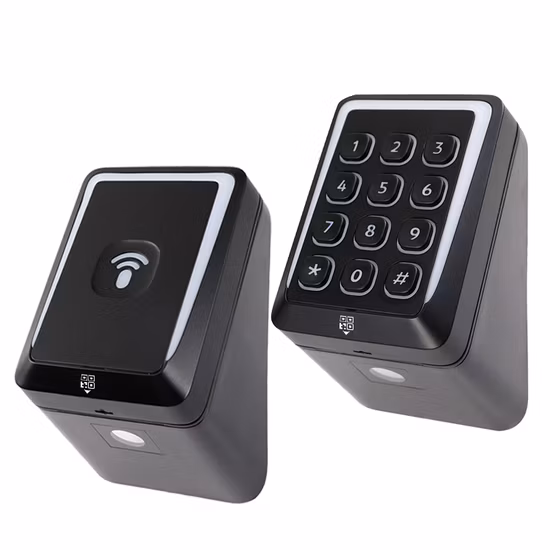

Wiegand RS485 Dual Frequency RFID NFC Reader with Qr Code Scanner

Overview

Basic Info.

Model NO.	Cidron QR
Indicator	LED Bar with Red, Green and Amber Intensely Adjust
Secure Module	ISO7816 MIFARE Sam AV2
Alarm	Tamper Alarm
Complaince	CE, RoHS3, FCC
Housing	Slimline & Standard Reader Design
Power	9-30VDC
Mobile ID	ISO18092 NFC, BLE (Bluetooth)
RFID Card	125kHz Em, 13.56MHz
Product	4-in-1 Access Control Reader
Contactless Smart Card	MIFARE, MIFARE Plus, DESFire EV1, EV2, Jcop
Qrcode	1d & 2D Codes Qr Code, Barcodes
Keypad	with/Without Mechanical Keypad
Transport Package	Well Package
Specification	L=109mm, H=25mm, W=79mm
Trademark	CIVINTEC
Origin	China
Production Capacity	1000PCS/Month

Product Description

Product Overview

The Cidron QR Code access control reader's compatibility with secure RFID-technologies, BLE, NFC mobile credential and QR code incorporated in a robust, yet timeless design, makes them ideally suited for both indoor and outdoor installations in all kinds of physical access control applications

Operating Frequency	125kHz & 13,56MHz
Contactless ISO Standard	ISO14443A/B, ISO18092 NFC

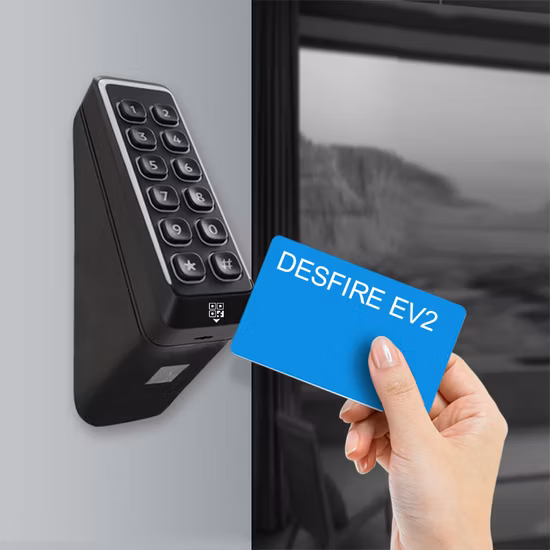

Contactless Cards	- EM Prox, EM4100, EM4200 - MIFARE Classic (4 byte, 7 byte), MIFARE Plus, MIFARE DESFire EV1/EV2 - ISO18092 NFC tags Contactless Cards

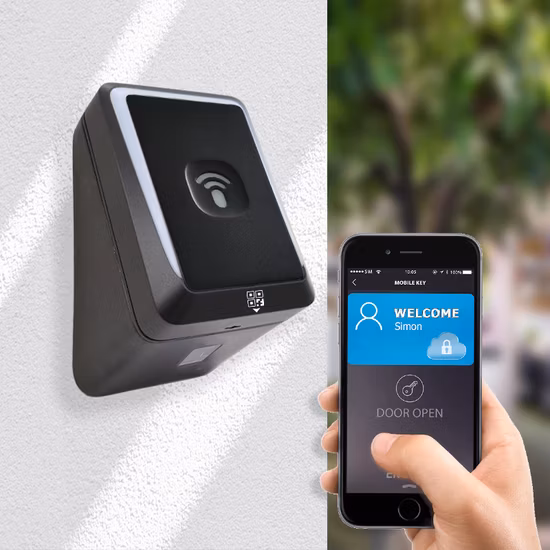

Mobile ID	ISO18092 NFC, BLE
QR Code	- Area image 640 x 480 pixels, Filed of View 68°(H) x 51(V) - Decode range: 20mm-150mm(QR 20MIL) - Roll/Pitch/Yaw: 360°, ±55°, ±55° - Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code,PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes.
Secure Access Module	MIFARE SAM AV2, SAM card connection slot
Communication Interface	Wiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, including Secure channel), BLE

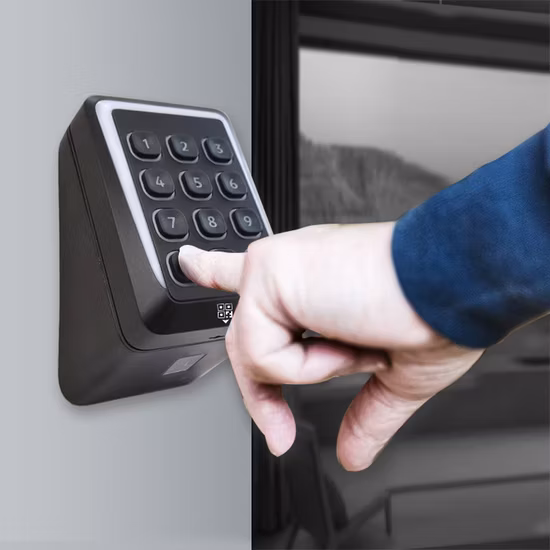

Keypad	12 digit keypad
Indicators	- LED bar with red, green and Amber - Buzzer
Tamper Alarm	yes
Operating Temperature	-40° ~ +70°C
Operating Humidity	0 ~ 95% RHNC (Relative Humidity No Condensation)

Design & Dimension

Product Features

Configuration & Development

Software APP Development
Cidron QR Code offer Software development kit for developer to customize his own smart phone APP software.

Our Service

Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.

Today, the competition is very tough in many markets, making it increasingly more important to stand out from the crowd and therefore we also offer the opportunity to profile your readers for increased recognition. You can choose between a laser engraved or printed logo in single color or in full color. This way, you get the readers to follow your or your customer's graphic profile.
